COMPRINT Australia Pty. Ltd.

COMPRINT ENGINEERING INT'L LTD has been designing, manufacturing and supplying printing and packaging equipment for over 50 years.

Comprint prides itself on its retained industry and process knowledge, and offers a comprehensive engineering design service to provide the printing and converting industry with a complete "engineered solution" package, to address all processing problems.

Latest development of CTP1400 Sheeter for cutting valuable printed reel. HS1400 for paper converting industrial. Rotary hot foil stamping / diecutting production line with option rewind facility.

Various products from Comprint:

SHEETERS Series:

CTP 1400 Cut to Register Sheeting Machine

Maximum web width: 1400mm
Maximum speed: 300m/min
Maximum knife load: 600gsm
Cutting accuracy:+/- 0.1mm

Twin Motor (TM 1400) Sheeter

Maximum web width: 1400mm
Maximum speed: 300m/min
Maximum knife load: 600gsm
Cutting accuracy: 0.5mm

Optional Accessories

J Series Reel Stand
Auto shaftless unwind CS1500
3 station slitting unit
Individual high speed tape drive
Beater roller
Edge roll decurler
Ribbon type trim waste removal system
Web tension control
Web guiding unit
Vacuum tail arrest
Layboy top tapes
Knife air jets
Static eliminator
Cut to preprint system
Buttom knife suction device
Delivery top tapes
Tape inserter
Reject gate
Non-stop delivery
In-line with press
Auto length and squareness control

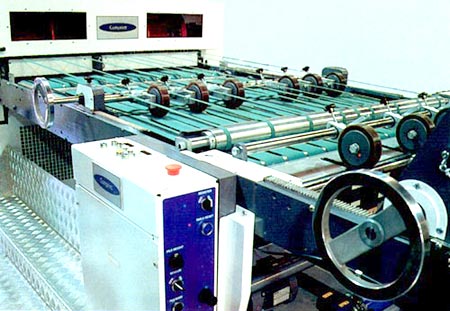

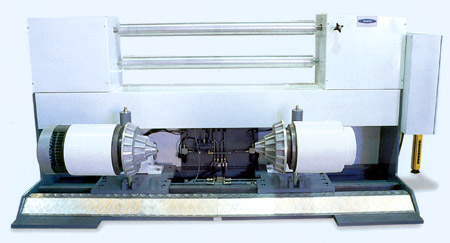

Auto shaftless Unwind (CS 1500)	Forwarding Tape unit/Slow Down Over Lapping Tape Unit

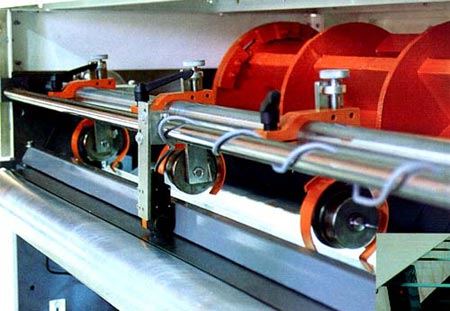

CTP Model	3 Station Slitting Unit

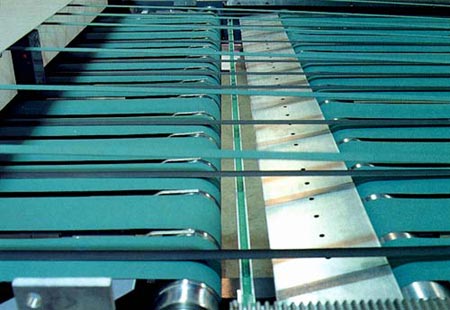

Vacuum Tail Arrest Unit

SPECIFICATION
Maximum web width	1400mm (55")
Cutt off range: maximum minimum	1500mm (59") 400mm (16")
Max mechanical speed	300metres / min (990ft / min)
Maximum pile heightIncluding pallet	1200mm (47")
Maximum pile weightIncluding pallet	1500kg (3300Ibs)
Services
Electrical load	16.5kw on 380 V supply
Air consumption	0.08cu. metres minute @5.5 bar(3 cu.ft. / minute @80 p.s.i.)
Maximum knife load	Multi webs up to a total of 600gsm.Single card up to 500gsm depending on density and cut quality required.

Gravure Series:

G 1000 Gravure Press (Film/Paper)

G5000 Gravure Printing Press

SPECIFICATION

Maximum web/printing width Minimum web width	1060/1000mm 500mm
Printing repeat range	400-800mm
Unwinder Maximum roll diameter Inside core diameter Direction of unwinding & splicing	1500mm 150mm One directions
Sheeting Specification: Cut-off range Cutting accuracy Maximum stacking height Maximum stacking weight	500-1100mm infinitely variable + 0.1mm for register cut 1200mm 2 tons
Rewinder Maximum roll diameter Inside core diameter Direction of rewinding & splicing	1000mm 76mm One direction
Maximum Operating Speed Note: Print speeds are influenced by the type and quality of the substrates inks and solvents, and the printing design.	300 metres/min
Typical material range: Paper and Cardboard	60gsm - 350gsm
Tension range	6 - 80kg
Main drive (standard) - DC thyristor controlled	38kW
Drying System	Electric with Recuperator heat recovery system. Other systems available upon request.

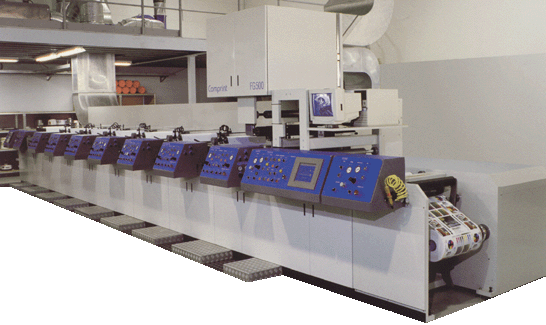

FG500 Flexo Press

Description

- The Comprint FG500 introduces a new concept to the printing of labels and flexible packaging.

- The modular construction of the press allows flexibility of specification, you have the choice of a comprehensive range of unwinding, rewinding and in-line converting systems.

- It can print in any one of three modes of operation:

As a dedicated flexographic printing press

As a dedicated rotogravure printing press

Or as a combined flexographic-rotogravure printing press.

Maximum web width 500m
Maximum unwind and rewind roll diameter 800mm
Maximum operating speed 150m/min
Printing repeat 250-500gsm
Typical material range

- Polypropylene - OPP/BOPP

- Polyester

- Alumimum Foil

- Paper

- Composite laminates

Multiflex 1000 Wet and Dry Laminator

Maximum coating width 1000mm
Maximum mechanical speed 250m/min.
Processing webs:

- Aluminium

- Paper

- Polyethylene

- OPP

- Polyester cellulose and a wide range of flexible packaging substrates

For more detail about the products, please click to www.comprint.com.hk
